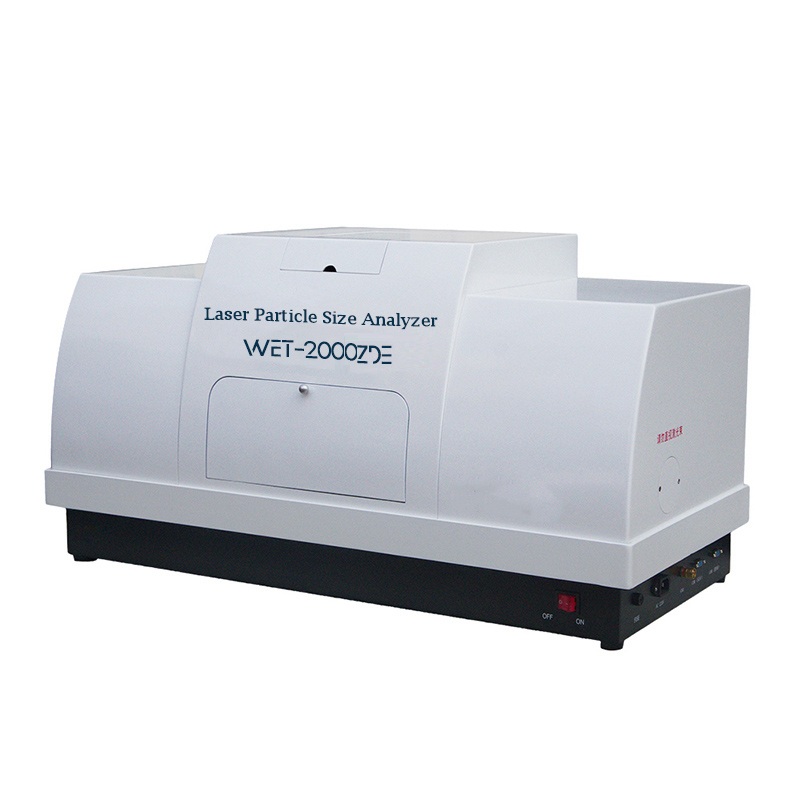

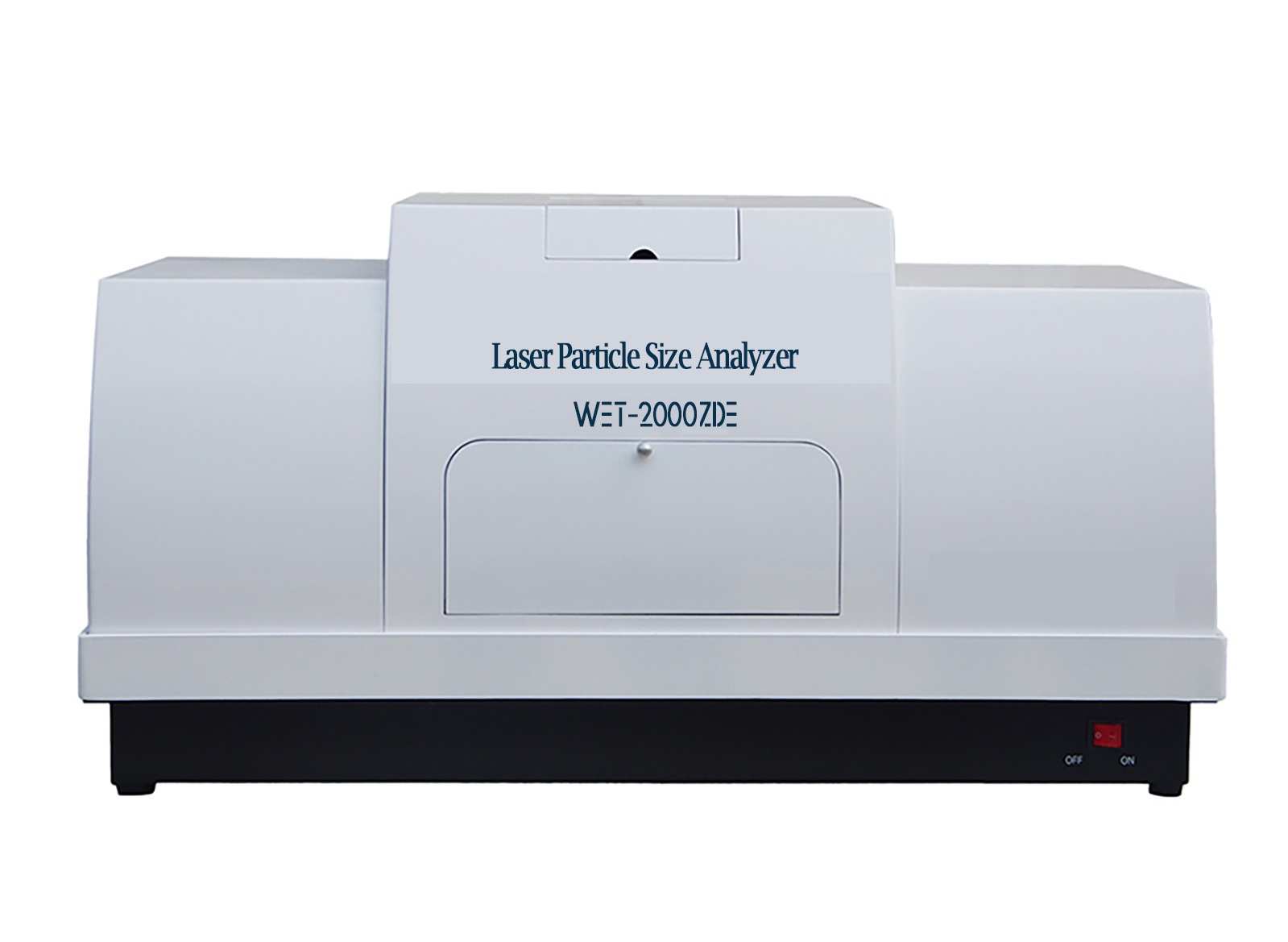

WET-2000ZDE Laser Diffraction Particle Size Analyzer Profile

WET-2000ZDE laser diffraction particle size analyzer, perform auto test, auto alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion, auto cleaning etc., really realize one-key operation. It adopts full built-in sampling system, effectively prevents large particles sedimentation problems in the circulation pipeline, ensure good accuracy. It adopts comprehensive laser diffraction particle size measurement principle with highly sensitive ring photoelectric detector improving the test accuracy greatly. Original designed unconstrained free fitting software technology with true reflection of the particle size distribution, to ensure truth and accuracy of the test results. Especially suits the laboratories of enterprises, colleges, universities, and research institutes.

WET-2000ZDE Laser Diffraction Particle Size Analyzer Technical Datasheet

WET-2000ZDE Laser Diffraction Particle Size Analyzer Features

1. Advanced design of optical path

A patented technique of Fourier transform of converging light released the scattered light at large-scattering-angles from the restriction of the aperture of the Fourier lens. The focal length is reduced to enhance the resolution of the instrument, and ring shaped of multi-element silicon photo-diode ensure gathering all the light signals of particles, highly improve the resolution.

2. Built-in automatic wet dispersion unit

We carefully aligned the stirring set-up, the ultrasonic dispersing unit and the sample circulation pipes, and fixed them inside the instrument. Such a built-in design effectively prevents the inhomogeneous dispersion and sedimentation of big particles, which can be observed in the designs that these dispersing units are separated from the instruments, where the sample circulation pipes are therefore too long, the sample will be sufficiently dispersed.

3. Unconstrained fitting techniques

The particle analysis software uses a unique unconstrained data fitting technique that we developed to obtain data of real particle size distribution; this is particularly important for researchers.

4. Micro sample chamber (optional)

The capacity of the sample chamber is as small as only 10ml. This helps with measuring expensive/precious samples, or samples difficult to be dispersed within medium.

5. Modern measurement control (intelligent SOP operation)

Users can perform all measurement procedures by simply operating on the PC and have ideal results in a very short time.

6. User-friendly operation

manual mode and the automatic mode, freely choose, to measure according to the sample features. In some conditions (e.g. the sample have unknown features or there are special requirements for the measurements), users can make a trail measurement in the manual mode first, and after having an idea of the sample features and the measurement conditions, then measure the samples in the automatic mode.

7. Fully automatic light path alignment

A precise four phase hybrid stepping motor automatically aligns the optical path and can adjust it at any moment, precision is up to 0.1um. This releases users from manual adjusting the optical path and improved accuracy and stability of the measurement results.

8. Quick measurements

Under automatic mode, all operation procedures are performed automatically, automatic water supply, automatic ultrasonic sample, stirring, circulation, background testing, sample testing, draining, and cleaning, can significantly reduce the measurement time, the whole procedures only take around 2 minutes.

9. Data analysis

Errors in the data are rejected and the measurement results are automatically processed. Manual data processing is not required, can output accredited data.

 Working Schematic

WET-2000ZDE Laser Diffraction Particle Size Analyzer Applications

1. Non-metallic powders such as calcium carbonate, talcum powder, kaolin, zirconium silicate, wollastonite, graphite, silica powder, tourmaline, mica, barite, plaster, bentonite, diamond, quartz, diatomite, feldspar, calamite, clay, garnet, vermiculite, titanium white power, etc.

2. Metallic powder such as aluminum powder, iron powder, magnesium powder, molybdenum powder, copper powder, zinc powder, other rare metal power and varied alloy powder, etc.

3. Pharmaceutical, agricultural pesticide, grinding particle, foodstuff, scientific research, teaching, cement, ceramic, glass, chemical industry, military industry, soil, toner, pigment, oil exploration, geological analysis, river silt and electronic particle, etc.

WET-2000ZDE Laser Diffraction Particle Size Analyzer Software Features

1. Analysis Modes

free distribution, R-R distribution, logarithm normal distribution, mesh number classification etc., can meet different requests for several industries particle size distribution measurement.

2. Statistic Method

volume distribution and quantity distribution

3. Statistic Comparison

• Statistic several testing results to compare and analyze;

• Get difference by compare test result of different batches of samples, samples before and after processing, and different time;

• Have great practical significance for industrial raw materials quality control.

4. User-defined Analysis

• percentage according to the particle size

• particle size according to the percentage

• percentage according to the particle size range

5. Test Report Formats

Can output reports in format of Word, Excel, photo, and Text.
